How many Main Power cables do you need for your LED Display?
For standard LED display video wall cabinets, a single daisy-chained power cable (like a 16A or 20A PowerCON) typically loads between 6 to 14 cabinets. The exact number depends heavily on your circuit breaker limit and whether the cabinets are for indoor or outdoor use.
1. Panel-to-Panel Connections (Rental/Staging Displays)

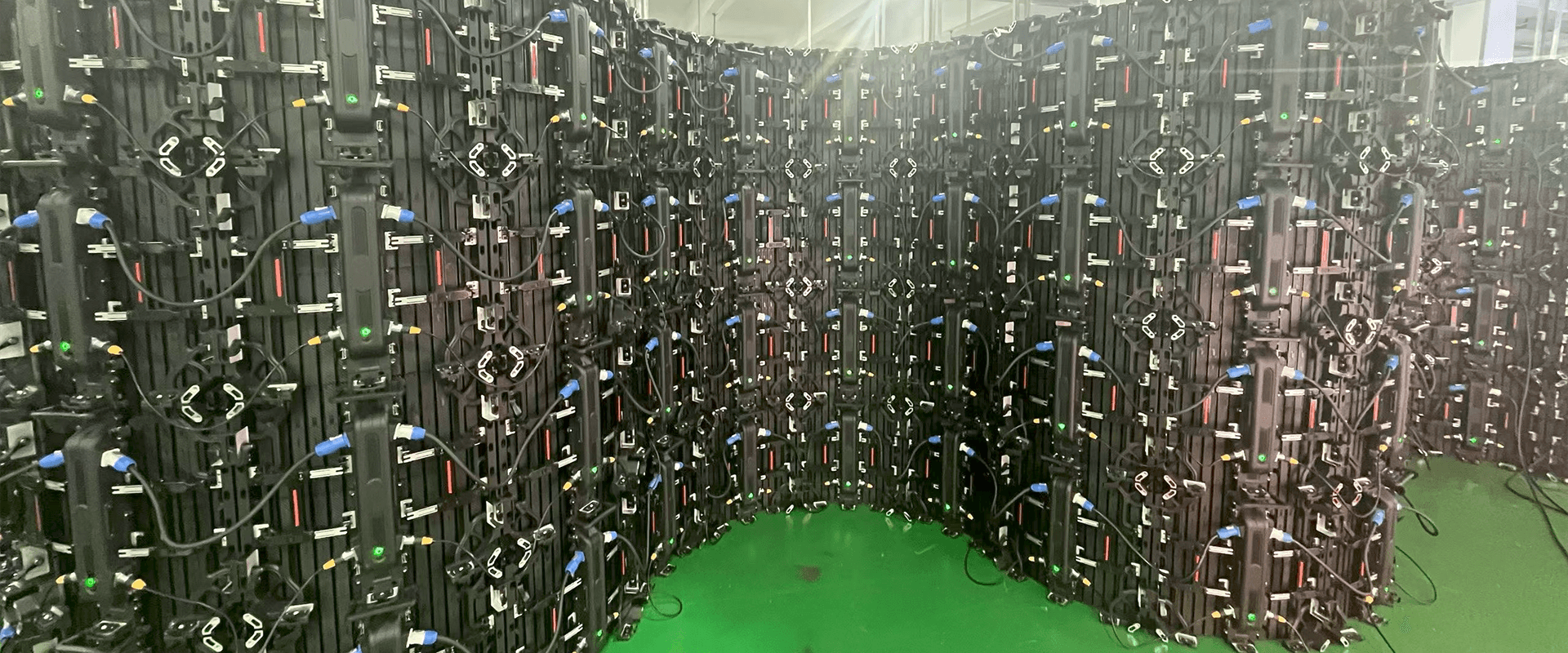

If you are assembling a large LED video wall using pre-built cabinets, you will use locking patch cables.• Main Power Cable: Connects the wall outlet (or power distribution box) to the first cabinet. Usually features a standard Edison/plug connector on one end and a PowerCon connector (blue) on the other.
• Link/Jump Cables: Used to "daisy-chain" power from one panel to the next. These use blue-to-white or white-to-white connectors to link adjacent cabinets securely with a twist-and-lock mechanism.
• Outdoor IP65 Cables: If your setup is outdoors, you will need weather-resistant, waterproof cables (often yellow-to-yellow).
2. Internal Module Connections (Fixed/DIY Installations)
If you are assembling the screen yourself from individual LED modules, you will need low-voltage DC cables:• 5V DC Power Cables: Typically 18AWG or 20AWG wires with a 2-pin connector (often called a 1x2 or JST-style connector). One end plugs into the module, and the other connects to the internal power supply.
• Ribbon/Data Cables: While not power, you will pair these with 16-pin data ribbon cables (e.g., HUB75E connectors) to transmit the media signal from your hub board to the module.
3. Main Power Cable and Panel-to-Panel Cable (AC Power)
• What they are: Standard AC power cords that connect the main power supply to the wall and link multiple large display cabinets together in a chain.• Connector Type: Seetronic or Neutrik powerCON True1 connectors. The blue connectors generally carry power into the screen, while white/yellow connectors pass power to adjacent panels.
• Cable Specs: Thick, ruggedized 14AWG or 12AWG cables designed to handle the high electrical loads of large video walls.
4. Circuit & Breaker Limitations
The limiting factor is rarely the wire itself, but rather the amperage of the circuit breaker at the power source.• 15-Amp Circuit (at 120V): Supports roughly 1,440W of continuous safe load.
• 20-Amp Circuit (at 120V): Supports roughly 1,920W of continuous safe load.
• 20-Amp Circuit (at 230V): Supports roughly 3,680W of continuous safe load.
5. Indoor vs. Outdoor Cabinet Draw
Indoor and outdoor panels consume power very differently, which dictates how many you can link together on one power run:• Indoor Cabinets: Typically draw less power (roughly 0.2A to 0.5A per panel at 208V/230V). You can often link up to 14 or more on a single 20A line.
• Outdoor Cabinets: Much brighter and draw higher currents (typically 1A to 1.5A per panel). You are often limited to just 4 to 8 cabinets on a single 20A circuit breaker.
6. The "80% Rule"
20% safety margin:You should always maintain a 20% safety margin.For example, on a 20A breaker at 230V (4600W max capacity), your maximum safe load is 3,680W. Divide this by the max rated wattage of a single cabinet to find your safe limit.

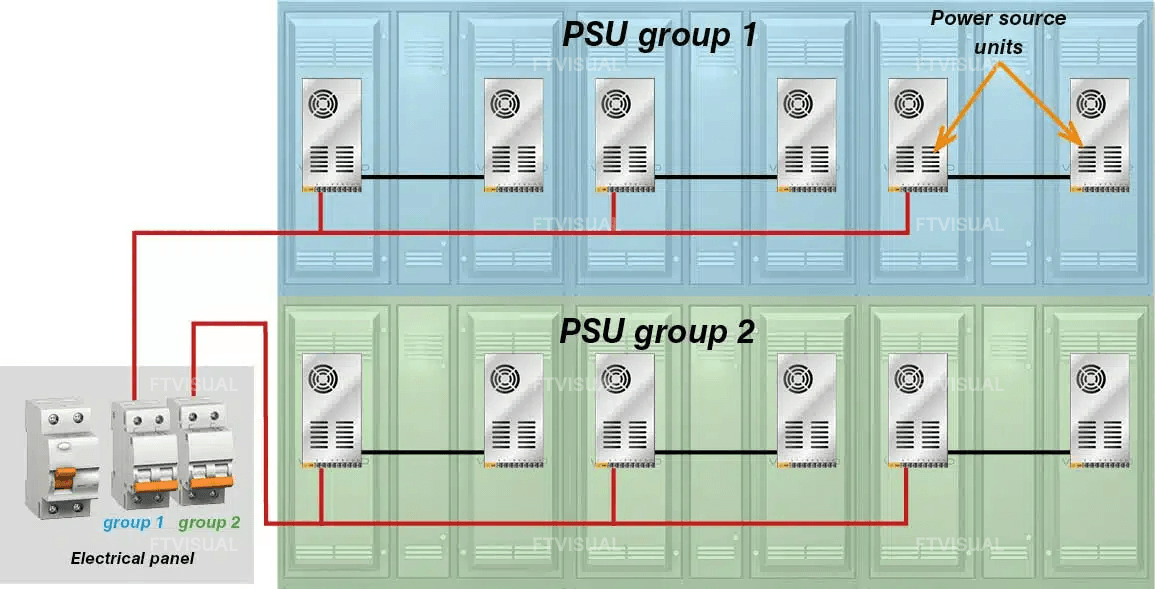

7. Daisy-Chaining (Jumper Cables) vs. Star Topology
While cabinets often feature "Power In" and "Power Out" ports, never daisy-chain too many together.The physical pass-through connectors (such as standard PowerCON connections) are usually rated for a maximum of 20A. If you link too many cabinets, you risk melting the connectors or tripping the breaker.
