What is LED screen cascade?

LED screen cascade refers to the technique of linking multiple LED controllers, sending cards, or standalone displays (like LED posters) in a series so they communicate and function as a single, large display. This method is commonly used for massive video walls, multi-screen retail setups, and large-format architectural displays.

1.Why Cascade LED Walls?

Cascading is used when a single control box or sending card cannot handle the total resolution or physical scale of a giant LED screen. By cascading hardware (such as NovaStar or Linsn controllers), a single PC or video source can send content down a chain, ensuring all panels display a perfectly synchronized, cohesive image. Key points as blow:
• Larger Canvas: If a single video processor or sending card cannot handle the total resolution of your massive display, cascading allows multiple controllers to share the load
• Unified Control: Cascading lets you adjust brightness, load configuration files, and push firmware updates to multiple screens simultaneously.
• Synchronized Playback: Perfect for LED poster displays, cascading ensures that video and image playback across all screens remains in perfect sync.
• Redundancy: If the master controller fails, cascading provides configurations that keep secondary controllers functioning, preventing total system blackouts.

2.How the Cascade Connection Works

The principle relies on a "master-to-slave" (or loop) connection.
Signal Flow: Your main video source (media player or PC) connects to the main (Master) controller.
Daisy-Chaining: You connect the Output port of the first controller to the Input port of the second controller, and repeat the process.
Hardware & Cables: Depending on the brand and model, these links use standard cables such as UART, USB, or Ethernet cables.

3.Types of LED Cascades

3.1. Hardware/Controller Cascade
For large outdoor spectaculars or high-resolution control systems (e.g., NovaStar MCTRL series), hardware cascading links multiple sending cards or processors together.
• Connection Methods: Uses Ethernet cables, 5-pin UART ports, or 10-pin ribbon cables.
• Configuration: You will use dedicated software (like NovaStar's NovaLCT or Linsn's LED Studio) to assign each controller its specific row and column.
3.2. LED Poster/Podium Cascade

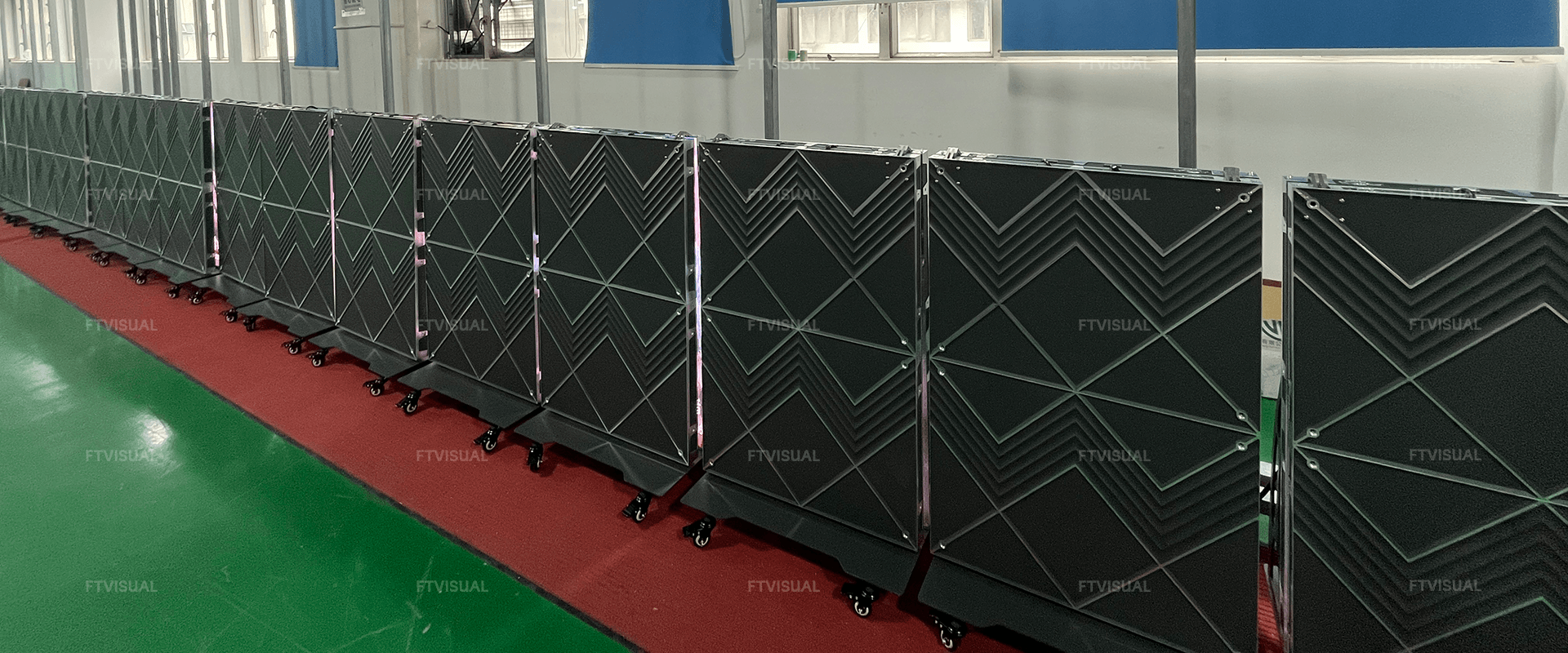

For standalone LED "posters" or digital podiums frequently used in retail, restaurants, and malls, cascading creates an extended wall or synchronizes independent displays.
• Connection Methods: These can be physically interlocked and connected via Wi-Fi, HDMI, or local networks.
• Configuration: Software apps like ViPlex Handy or VLEX Express (often used for poster units) allow users to group devices and set them to "Multi-screen Mosaic" mode.

4.Key Steps to Set Up a Hardware Cascade

Setting up a cascaded system requires specific hardware mapping to prevent visual tearing or signal failure.
a. Link the Controllers: Connect the master controller to the slave(s) via the primary and secondary ports (e.g., UART OUT to UART IN) using the manufacturer's specified cables.
b. Assign Device Hierarchy: Some systems (like Linsn) require you to physically press buttons or use jumpers to designate order IDs (e.g., set to "1" for the master, "2" for the next).
c. Software Mapping: Open your control software (e.g., NovaLCT), go to the Screen Configuration tab, and enter the total number of connected devices, rows, and columns. You will then map the physical pixels of the display.

5.Screen Cascade Common Applications

• Command Centers: Processing different content instantly on different sections of a large control room display.
• Retail & Advertising: Lining up multiple digital LED posters side-by-side to act as one large transparent or solid billboard.
• Stage & Events: Linking several massive screen processors for live concerts and broadcast environments.
