Ready Stock 3x2m LED Video Wall Solutions

A 3x2 meter (approx. 9.8 x 6.6 ft) LED video wall is a highly versatile setup typically composed of 12 modular panels (e.g., 500x1000mm cabinets). Prices vary widely based on pixel pitch, mounting needs, and indoor/outdoor capabilities. We are glad to share a P3.9 solutions fyi:

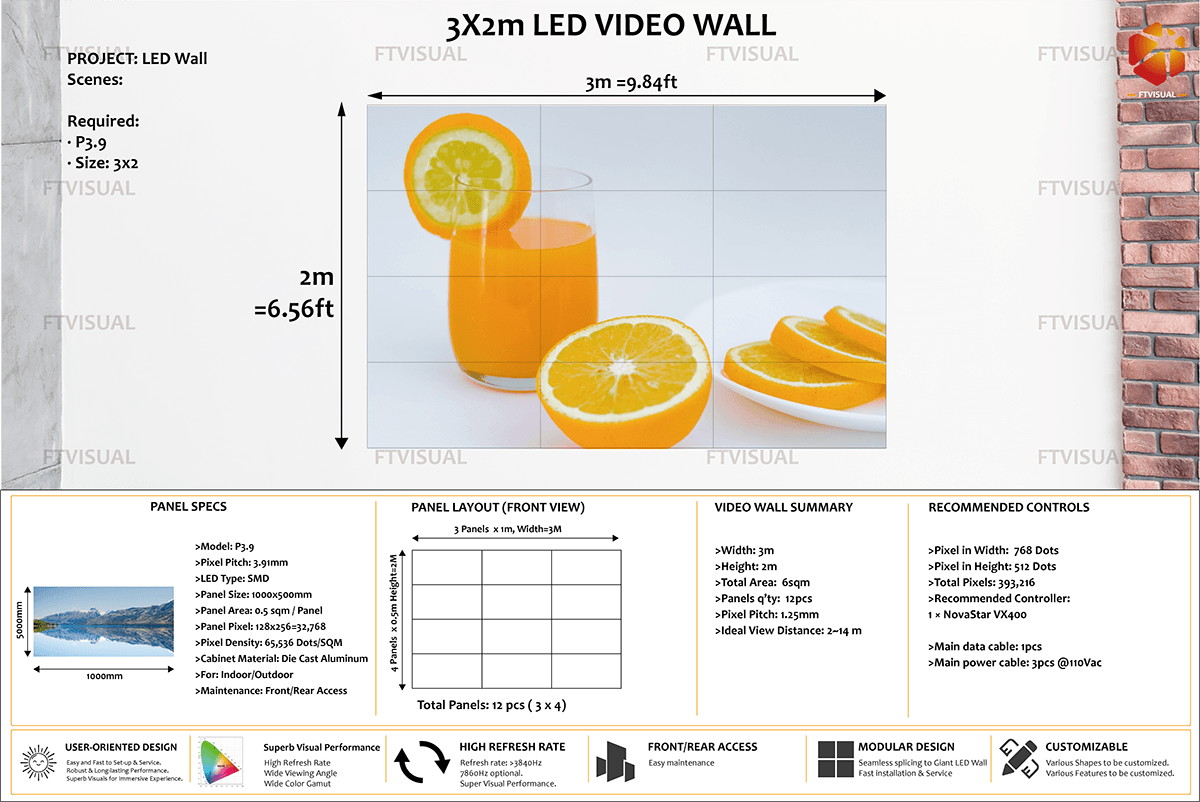

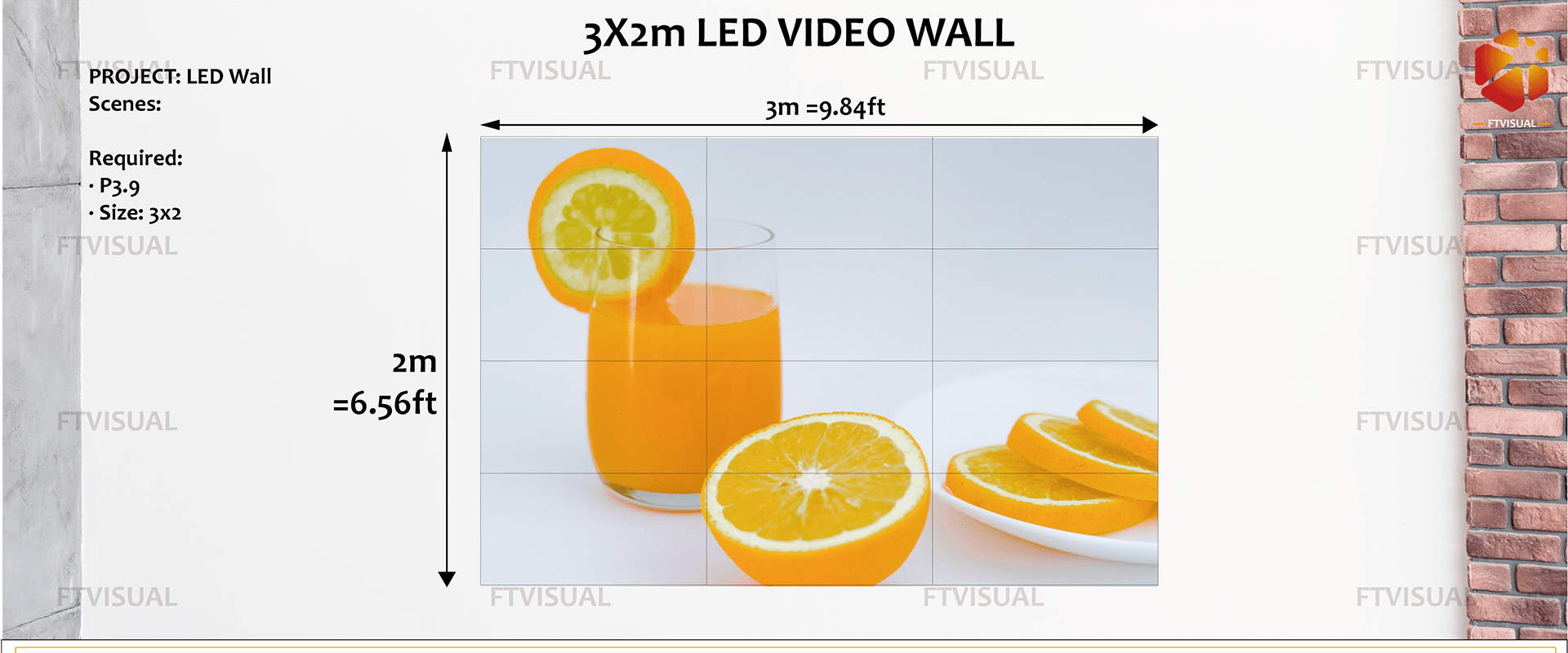

1.FTV 3x2m Video Wall P3.9mm Solution

• Pixel Pitch: 3.91mm (Ideal viewing distance: 12+ feet / 3.9+ meters)
• Configuration: 12 total panels (arranged 3 wide by 4 high) to achieve a 3-meter wide by 2-meter high display
• Brightness: 800–1,000 NITS (Indoor) to 4,000+ NITS (Outdoor)
• Maintenance: Front and rear serviceable magnetic modules for quick repairs

2.Key Specifications & Components

• Panel Configuration: Uses 12 panels measuring 1000x500mm each.
• Pixel Density: 65,536 dots/m² with a viewing distance starting at 3 to 4 meters.
• Indoor vs. Outdoor Ratings:
o Indoor solutions emphasize fine pixel pitches (e.g., 1.9mm to 3.9mm) and lower brightness (600-1000 NITS) for close viewing.
o Outdoor solutions require higher brightness (3,000-5,000+ NITS) and weatherproofing (IP65/66).
• System Control: Typically relies on NovaStar processing (e.g., NovaStar vx400 pro) with HDMI/SDI inputs.

3.Standard Package Inclusions

•LED Panels: High-refresh-rate SMD2121 (indoor) or SMD1921 (outdoor) LEDs.
•Mounting: Rigging hardware or ground stacking bases.
•Cabling: Power and data cables for linking panels.
•Flight Case: Road cases are frequently included for mobile rental and stage applications.

4. Important Custom Factors

• Pixel Pitch & Viewing Distance: Pixel pitch (the distance between LEDs in millimeters) dictates resolution. For a 3x2m wall, a tighter pitch (like 2.6mm or 3.9mm) works best if audiences are standing close, while a 4.8mm or larger pitch is suited for viewing from farther away.
• Mounting Configurations: Do you need to fly/hang the screen from above using a truss, or does it need to be mounted directly to a wall or ground-supported from behind?
• Serviceability: Many commercial packages offer front or rear serviceability, allowing technicians to pop out broken modules from the front without having to dismantle the entire wall.

FTV LED Screen Solutions

FTV offer turn-key LED screens, you can browse below:
Indoor LED Wall: Super fine pitch, great visual, work for DCI-P3 Wide Color Gamut
Outdoor LED Screen: High brightness, great visual, and super robust design.
Rental LED Screen: Easy and fast to set-up, robust& reliable design.
Creative LED Screen: Customized LED Walls with various shapes.
For more solutions and customization, please be free to contact us.

Get your desired LED Display Solutions.

• FTV offers Standard LED Screens, as well as OEM/ODM/Customization supports.
• We have regular USA/Shenzhen Stocks Available for 2-3days delivery.
• For new productions, it takes generally 10-20days.
Welcome to contact us and get your desired LED Screens.
