Ready Stock 5x2.75m LED Video Wall Solutions

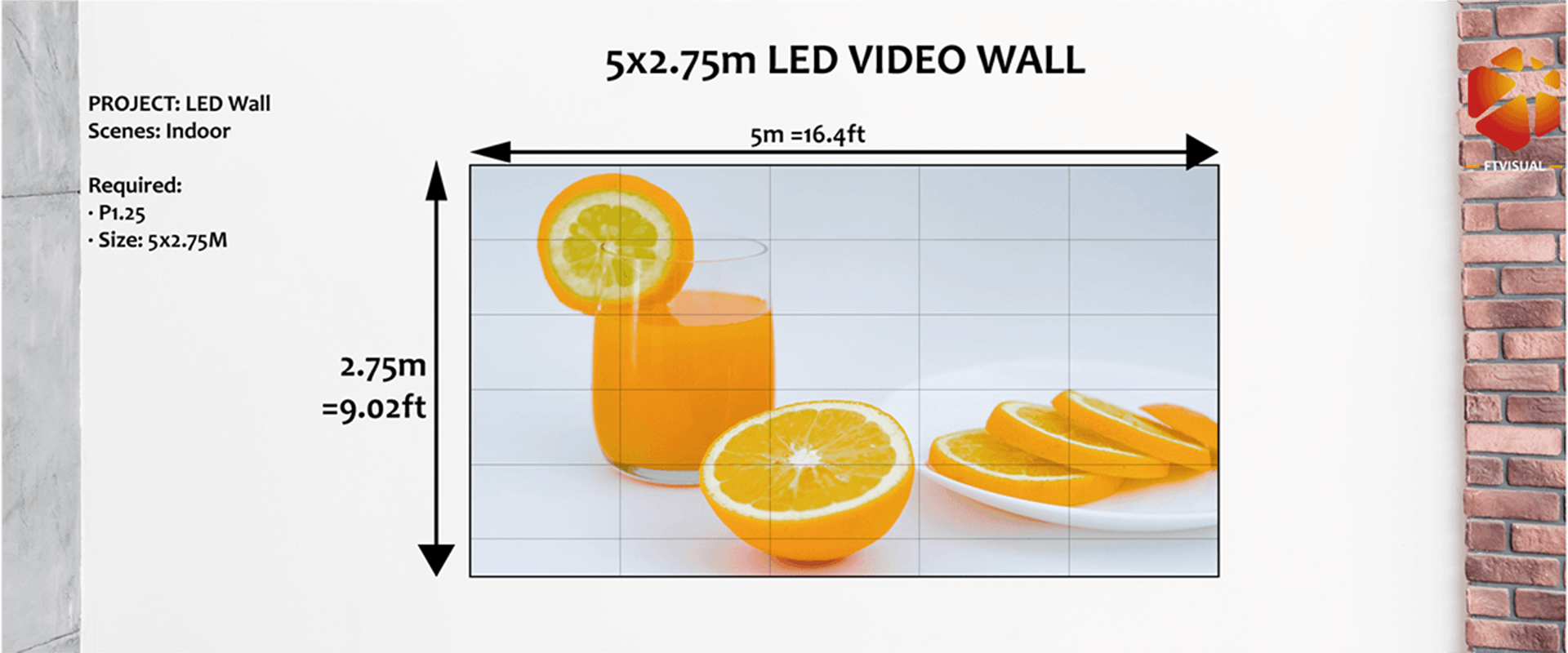

A 5x2.75-meter LED video wall provides a total display area of 13.75 square meters, closely matching a standard 16:9 widescreen aspect ratio. The dimensions allow for smooth playback of 4 K content, making it perfect for corporate boardrooms, control rooms, retail facades, or stage environments. We are glad to share a P1.25 solutions fyi:

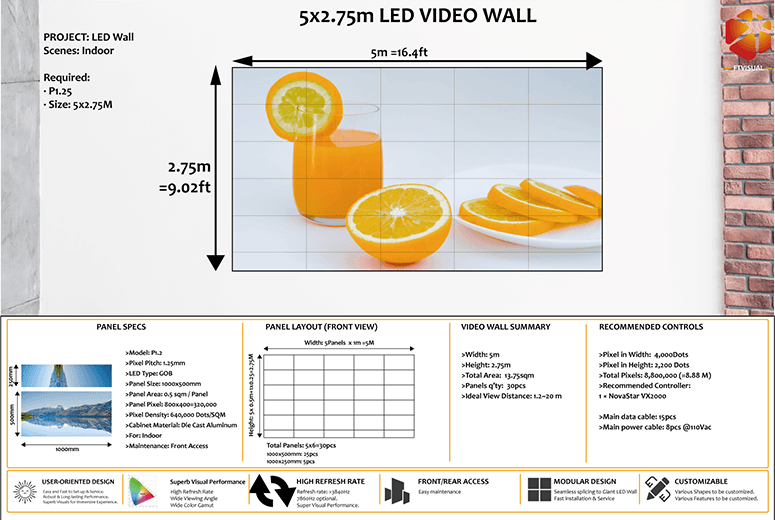

1.FTV 5x2.75m Video Wall P1.25mm with Ready stock

• Pixel Pitch: 1.25mm (Ideal viewing distance: 1.5+ meters)
• Configuration: 30 total panels (arranged 5 wide by 6 high) to achieve a 5meter wide by 2.75meter high display
• Brightness: 600–1,000 NITS (Indoor) to 4,000+ NITS (Outdoor)
• Maintenance: Front and rear serviceable magnetic modules for quick repairs

2.Pixel Pitch & Resolution Recommendations

The ideal pixel pitch for a 5x2.75m wall depends primarily on your minimum viewing distance:
• P1.25 (Fine Pitch): Ideal for boardrooms and close-up, premium indoor viewing (2m–5m). Offers ultra-sharp details.
• P1.56 or P1.875: Standard fine-pitch for corporate lobbies, auditoriums, and control rooms (3m–7m).
• P2.5: Most versatile option for general presentations, retail stores, and tradeshows (5m–10m).
• P3.9+ (Rental/Outdoor): Best for bright retail windows, outdoor events, or large stages where people view the screen from further away (8m+).

3.Key Technical Specifications

When selecting a turnkey 5x2.75m LED solution, ensure your provider includes the following baseline capabilities:
• Brightness: 600–1,000 Nits for indoor use, 3,000+ Nits for direct outdoor sunlight.
• Refresh Rate: ≥3840Hz to eliminate flicker on camera and ensure smooth motion.
• Serviceability: Front-serviceable magnetic modules for quick maintenance without rear access space.
• Processing: Advanced scaling and video processors (like NovaStar VX2000) for seamless 4K splicing.

4. Important Custom Factors

• Pixel Pitch & Viewing Distance: Pixel pitch (the distance between LEDs in millimeters) dictates resolution. For a 5x2.75m wall, a tighter pitch (like 2.6mm or 3.9mm) works best if audiences are standing close, while a 4.8mm or larger pitch is suited for viewing from farther away.
• Mounting Configurations: Do you need to fly/hang the screen from above using a truss, or does it need to be mounted directly to a wall or ground-supported from behind?
• Serviceability: Many commercial packages offer front or rear serviceability, allowing technicians to pop out broken modules from the front without having to dismantle the entire wall.

FTV LED Screen Solutions

FTV offer turn-key LED screens, you can browse below:
Indoor LED Wall: Super fine pitch, great visual, work for DCI-P3 Wide Color Gamut
Outdoor LED Screen: High brightness, great visual, and super robust design.
Rental LED Screen: Easy and fast to set-up, robust& reliable design.
Creative LED Screen: Customized LED Walls with various shapes.
For more solutions and customization, please be free to contact us.

Get your desired LED Display Solutions.

• FTV offers Standard LED Screens, as well as OEM/ODM/Customization supports.
• We have regular USA/Shenzhen Stocks Available for 2-3days delivery.
• For new productions, it takes generally 10-20days.
Welcome to contact us and get your desired LED Screens.
