4.8x2.7m LED Video Wall Solutions, Ready Stocks P1.25mm

A 4.8 x 2.7m P1.25mm LED video wall delivers an exact 4K resolution (3840 x 2160 pixels) with a 16:9 golden aspect ratio, making it ideal for high-end corporate boardrooms, broadcast studios, and control rooms. We are glad to share a P1.25 solutions fyi:

1.FTV 4.8x2.7m Video Wall P1.25mm with Ready stock

• Pixel Pitch: 1.25mm (Ideal viewing distance: 1.5+ meters)

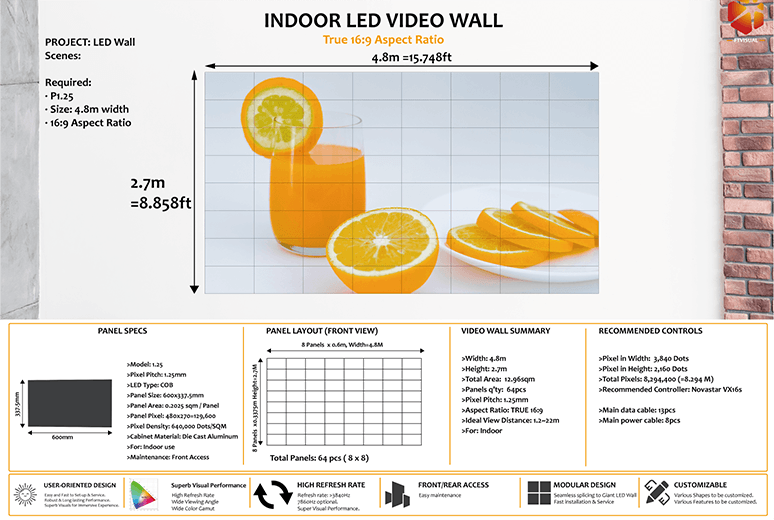

• Configuration: 64 total panels (arranged 8 wide by 8 high) to achieve a 4.8meter wide by 2.7meter high display
• Brightness: 600–1,000 NITS (Indoor) to 4,000+ NITS (Outdoor)
• Maintenance: Front serviceable magnetic modules for quick repairs.

2.Technical Specifications

• Pixel Pitch: 1.25mm ultra-fine pitch for close-up viewing (optimum viewing distance from 1.5 meters to 3 meters).
• Pixel Density: 638,976 dots/m² delivering crisp text and ultra-smooth video details.
• Refresh Rate: ≥ 3840Hz high refresh capability to prevent scan lines or flicker on studio cameras.
• Service Type: Fully front-serviceable magnetic modules for fast wall-mounted installation and maintenance using a vacuum suction tool.

3.Configuration & Structure

• Aspect Ratio: Perfect 16:9 ratio matching standard broadcast and presentation content natively without scaling artifacts.
• Cabinet Design: Precision die-cast aluminum cabinets (commonly utilizing standard dimension 600 x 337.5mm) to achieve zero-bezel, seamless alignment.
• Power & Control: Redundant power supply options with advanced NovaStar or Colorlight receiving cards supporting HDR and high grayscale depth at low brightness.

4. Important Custom Factors

• Pixel Pitch & Viewing Distance: Pixel pitch (the distance between LEDs in millimeters) dictates resolution. For a 4.8x2.7m wall, a tighter pitch (like 2.6mm or 3.9mm) works best if audiences are standing close, while a 4.8mm or larger pitch is suited for viewing from farther away.
• Mounting Configurations: Do you need to fly/hang the screen from above using a truss, or does it need to be mounted directly to a wall or ground-supported from behind?
• Serviceability: Many commercial packages offer front or rear serviceability, allowing technicians to pop out broken modules from the front without having to dismantle the entire wall.

FTV LED Screen Solutions

FTV offer turn-key LED screens, you can browse below:
Indoor LED Wall: Super fine pitch, great visual, work for DCI-P3 Wide Color Gamut
Outdoor LED Screen: High brightness, great visual, and super robust design.
Rental LED Screen: Easy and fast to set-up, robust& reliable design.
Creative LED Screen: Customized LED Walls with various shapes.
For more solutions and customization, please be free to contact us.

Get your desired LED Display Solutions.

• FTV offers Standard LED Screens, as well as OEM/ODM/Customization supports.
• We have regular USA/Shenzhen Stocks Available for 2-3days delivery.
• For new productions, it takes generally 10-20days.
Welcome to contact us and get your desired LED Screens.
