Why is COB P1.25mm led screen getting popular?

A 1.25mm COB LED screen is growing in popularity because it combines ultra-fine pixel resolution for close viewing with the superior physical durability and deep contrast of Chip-on-Board (COB) technology.

1.Key Reasons for Popularity

• Close-Up Clarity: A 1.25mm pixel pitch (P1.25) means pixels sit very close together. Viewers can stand just 1.5 meters away without seeing individual pixels or grainy images. This fits smaller spaces like boardrooms and broadcast studios.

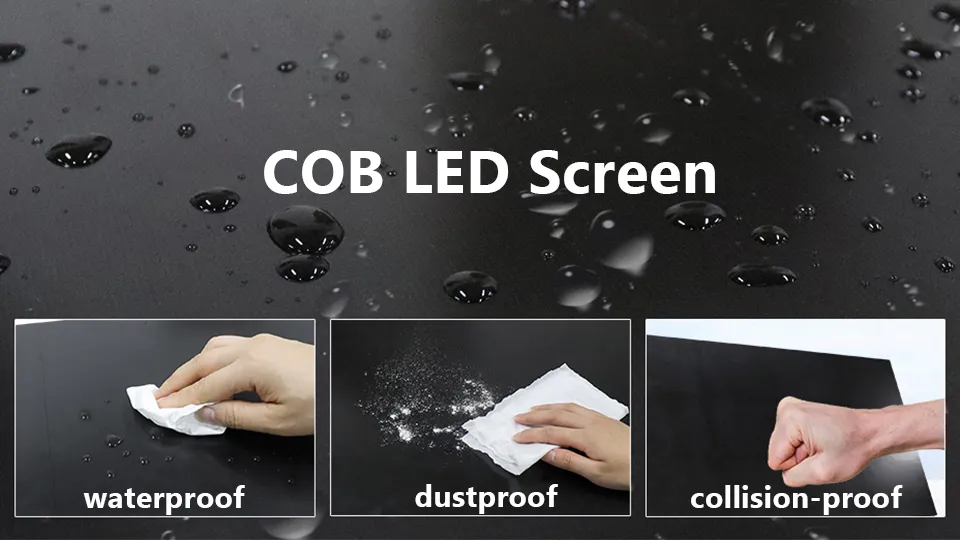

• Superior Durability: COB packaging mounts bare LED chips directly onto the circuit board and seals them in a protective resin layer, making the screen resistant to dust, moisture (IP54+ rating), impacts, and scratches.
• No "Dead Lamps" or Falling Beads: Unlike traditional Surface-Mounted Device (SMD) screens where individual LED bezels can crack or knock loose during transport and installation, COB's solid surface prevents loose lamps.
• High Contrast and Rich Colors: Eliminating individual plastic lamp bezels creates deeper blacks, a higher contrast ratio, and uniform color consistency across the entire display.
• Camera-Friendly Performance: High refresh rates (often 3,840 Hz) prevent flickering, scan lines, or shadow artifacts when people view the screen through video cameras or broadcast setups.
• Better Thermal Management and Lifespan: Direct bonding to the board helps dissipate heat much faster, keeping the screen cooler during long hours of operation and extending its overall lifespan.

2. Main Applications

A 1.25mm Chip-on-Board (COB) LED screen is best used for high-resolution indoor video walls where people stand close to the display, for example:
• Corporate Conference Rooms: Used for sharp presentations, data spreadsheets, and video conferencing where text must be readable from a short distance.
• Control and Monitoring Rooms: Built for 24/7 operations to display detailed security feeds, maps, and telemetry data without pixel distortion.
• Broadcast Studios: Placed in the background of TV sets because its high refresh rate prevents rolling lines on camera.
• Exhibition Halls and Showrooms: Used for high-end digital signage and product showcases that require deep contrast and vivid colors.
• Luxury Retail and Lobbies: Installed in reception areas to display promotional videos and high-resolution artistic graphics.
• High-End Home Theaters: Used for premium residential cinema rooms requiring seamless, large-format 4K or 8K displays.

3.Popular COB Solutions

The most popular alternative COB screen pixel pitches on the market are categorized below:The most popular alternative COB screen pixel pitches on the market are categorized below:

a. The Ultra-Fine Tier: P0.9mm & P0.7mm
• P0.9mm (0.93mm): This has become the definitive sweet-spot replacement for high-end installations requiring true 4K resolution at a smaller physical wall footprint. It handles a comfortable viewing distance as close as 0.9 meters (3 feet).
• Primary Use: Military command centers, utility management grids, and executive meeting rooms where data sheets or map typography must remain legible from an arm's length.
• P0.7mm (0.78mm) & Below: These solutions approach the physical limits of micro-packaging and are typically designated as MicroLED COB displays.
• Primary Use: Scientific imaging labs, medical surgical monitors, and ultra-luxury private home cinemas.

b. The High-Value Commercial Tier: P1.5mm & P1.8mm
• P1.5mm (1.56mm): One of the highest volume COB configurations deployed commercially. It provides a bridge between extreme resolution and cost efficiency for viewing distances around 1.5 to 2.5 meters.
• Primary Use: Mid-tier corporate lobbies, church altar backdrops, and secondary university lecture screens.
• P1.8mm (1.87mm): At this pitch, traditional SMD (Surface-Mounted Device) screens are significantly cheaper. However, clients specify P1.8mm COB versions exclusively to gain the physical protective properties of the resin coating.
• Primary Use: High-traffic public spaces, airport terminal informational walls, and interactive retail malls where pedestrian traffic risks bumping, scratching, or spilling liquids onto the display surface.

4.Strategic Deployment Rules of Thumb

• The "Text & Mapping" Rule: If operators sit at standard office desks and read small fonts or GIS map details, do not go higher than P0.9mm.
• The "Camera Lens" Rule: For television studios or virtual background stages, P1.25mm or P1.5mm COB is preferred because the smooth protective layer and high refresh rate eliminate the wavy pattern (moiré effect) picked up by professional cameras.
• The "Impact Protection" Rule: In public places where people or luggage might touch the wall, choosing P1.5mm or P1.8mm COB over traditional SMD has nothing to do with resolution—it is chosen because the resin coating serves as physical armor against scratches and liquid spills.
